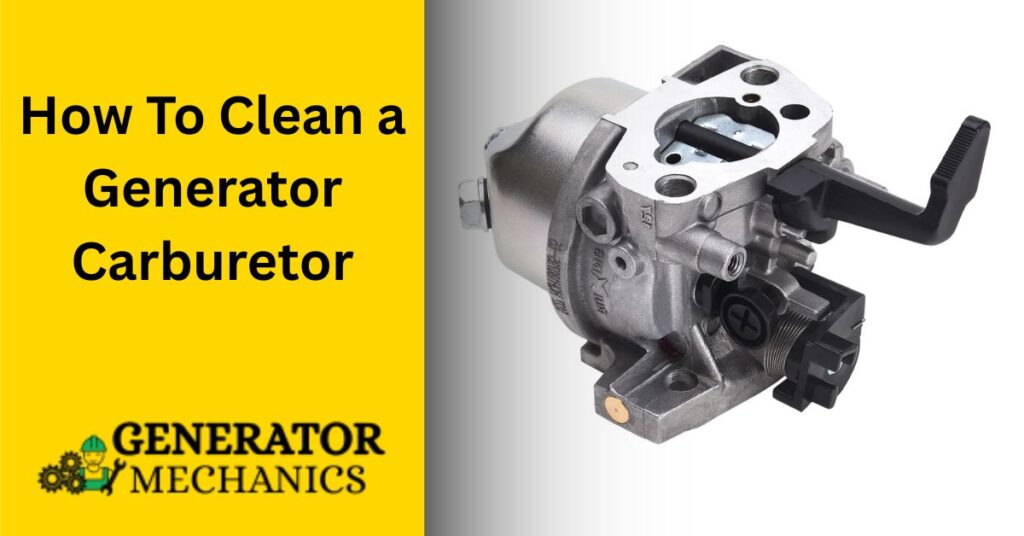

How to Clean a Generator Carburetor for Reliable Starts Every Time
Generator carburetors mix air and fuel in precise ratios. Over time, varnish, gunk, or water in fuel can clog tiny passages. When that happens, you’ll notice hard starting, surging, or stalls. Here’s the deal: a clean carburetor translates to dependable power—whether you’re camping, running a job site, or powering your home during an outage.
Signs You Need to Clean the Carburetor
Before you strip your carb, check for these telltale symptoms:
- Hard Starting
- You’ll pull the recoil cord ten times before it coughs to life.
- Rough Idle
- Engine sounds uneven, like it’s sputtering.
- Reduced Power Output
- Wattage falls below rated capacity.
- Fuel Odors
- Gasoline smell near the engine—could mean leaking float bowl.
Pro Tip: If your generator sat idle over winter or you used ethanol-blended fuel, plan on a carb inspection before the next run.
Tools & Materials You’ll Need
Gather these items before you start:
Tool / Material | Purpose |
---|---|
Screwdrivers (flat & PH2) | Remove carburetor housing and jets |
Wrenches / Sockets | Detach fuel line and mounting bolts |
Carburetor cleaner spray | Dissolve gum, varnish, & deposits |
Compressed air or canister | Blow out tiny passages |
New gaskets & O-rings | Ensure leak-free reassembly |
Clean rags | Wipe parts and catch drips |
Safety gloves & goggles | Protect skin and eyes from chemicals |

Step-by-Step Cleaning Process
1. Preparation & Safety
- Switch Off & Cool Down.
- Turn off the generator and let it cool for at least 30 minutes.
- Drain Fuel.
- Close the fuel valve (if equipped).
- Tip the generator to drain out remaining gas from the tank and carburetor.
- Work in a ventilated area.
- Carb cleaner fumes can be harsh. Keep windows open or work outdoors.
2. Remove the Carburetor
- Disconnect Fuel Line.
- Use pliers to loosen the clamp; slide the line off.
- Unbolt Throttle Linkage & Choke Linkage.
- Note the linkage positions—take photos if needed.
- Unbolt Carburetor from Intake Manifold.
- Keep hardware in a small container to avoid losing screws.
3. Disassemble the Carburetor
- Separate Float Bowl.
- Remove the bowl retaining screw; bowl drops off, revealing float and needle.
- Remove Float & Needle Valve.
- Inspect for wear or sticking—replace if necessary.
- Take Out Jets & Emulsion Tube.
- Use the correct screwdriver. Don’t force a stripped screw.
4. Clean All Components
- Spray Carb Cleaner.
- Direct spray into all orifices, jets, and float bowl interior.
- Soak Heavily Soiled Parts.
- Place metal parts in a container of cleaner for 15 minutes.
- Blow Out Passages.
- Use compressed air to clear any remaining debris.
- Wipe & Dry.
- Use a clean rag; ensure parts are completely dry before reassembly.
5. Reassemble & Reinstall
- Replace Gaskets & O-rings.
- Never reuse old gaskets—they compress and can leak.
- Reattach Jets, Float, & Needle Valve.
- Ensure float height matches manufacturer spec (often ~5–7 mm).
- Bolt Carburetor Back On.
- Reconnect throttle and choke linkages in their original positions.
- Reconnect Fuel Line & Open Valve.
- Check for leaks before firing up.
Common Pitfalls & Troubleshooting
- Over-Spraying Cleaner
- Too much solvent can damage diaphragms on some carb types.
- Forgetting to Set Float Height
- Incorrect height leads to flooding or fuel starvation.
- Misaligned Linkages
- The throttle might stick open or closed, causing revving issues.
- Using Old Fuel
- Varnish buildup returns quickly; always drain stale gas.
Case Study: Backyard Power Outage
Scenario: A homeowner in rural Texas relied on a 5 kW generator during a weekend storm. After six months of storage, the unit refused to start.
- Diagnosis: Hard pull, no spark complaint—turned out the carburetor float bowl was gummy.
- Action: Cleaned carb following steps above; replaced needle valve and gaskets.
- Result: The generator started on the first pull and ran smoothly for eight hours straight—no hiccups, no stalls.
Routine Maintenance Tips
- Use Fresh Fuel
- Add fuel stabilizer if you’ll store fuel over 30 days.
- Run Generator Monthly
- A 15-minute idle burn keeps valves lubricated and carburetor passages clear.
- Inspect Air Filter
- Replace or clean foam filters every 100 hours of use.
- Check Spark Plug
- Clean or replace every season; the gap should be 0.5–0.6 mm.
- Don’t forget your battery! If your generator has electric start, cleaning the battery terminals is just as important for reliable operation.
Table—Comparing Carburetor Cleaner Types
Feature | Aerosol Spray | Soak-Type Cleaner | Ultrasonic Tank Cleaning |
---|---|---|---|
Convenience | High | Medium | Low |
Penetration Power | Medium | High | Very High |
Equipment Needed | None | Container | Ultrasonic Tank |
Safety Concerns | Fumes | Fumes/Spills | Chemical Disposal |
Ideal for | Quick Spot Cleaning | Thorough Cleaning | Professional Shops |
Conclusion: Keep Your Generator Ready
Cleaning a generator carburetor is a small effort for big peace of mind. You’ll avoid the frustration of a no-start when you need power most. Remember:
- Stay safe: drain fuel, work cool.
- Follow each step: disassemble, clean, blow out, and reassemble.
- Schedule routine checks: monthly runs, fresh fuel, and filter inspections.
Got a generator waiting in the garage? Grab those screwdrivers and cleaner spray—give your carburetor a spa day. You’ll thank yourself next time the lights go out!
